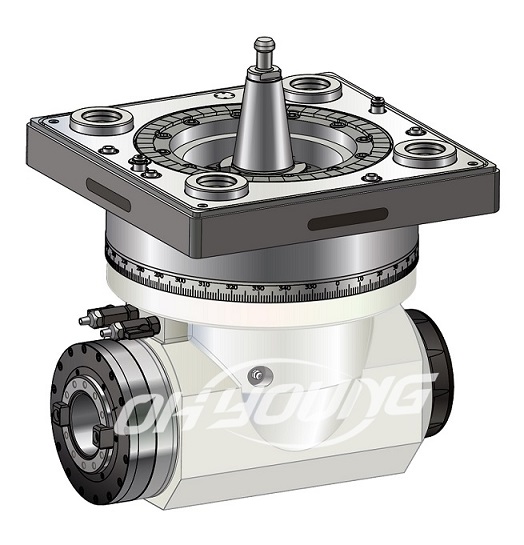

XF90 Automatic Right Angle Milling Head
1.European OEM’s spindle clamping is about 2~3 times stronger than conventional ISO four pull bolt on clamping force.
2. A design of ultra-short butt spindle clamping height supported by a super-large curvic coupling reinforces heavy cutting torque.
3. A new type of angle indexing curvic coupling with loose-proof design avoids gear disengagement when insufficient clamping pressure happens.
4. Japanese bearings and grinding grade gears, couplers imported from Europe and wear-resistant oil seals enhance production precision and machining quality. Besides, combined with A-axis rotation to improve productivity.
Inquiry Now
| Item \ Model | XF90 |
| Spindle Type | BBT 50 |
| Max. Speed | 3500RPM / min |
| Spindle Lubrication | Grease |
| Max. Torque | 1000Nm |
| Transmission Power | Max. 38kw |
| Transmission Gear Ratio | 1:1 |
| Max. Tool Diameter | Ø150 |
| Indexing Angle | 5° / 2.5° / 1° |
| Coolant Thru Spindle | CTS(Optional) |
