Conventional Series Milling Heads and CNC Series Milling Heads

Our Milling Head and Angule Head are sold globally. We welcome your question, comment and suggestion.

Products

Milling Head Angle Head Extension Head

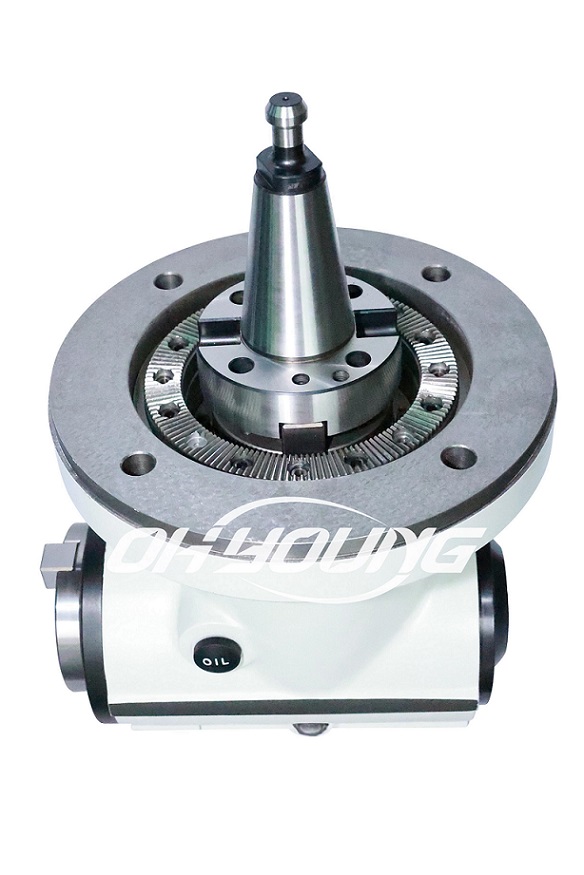

N75-XV Curvic Coupling Indexing Right Angle Milling Head

Inquiry Now

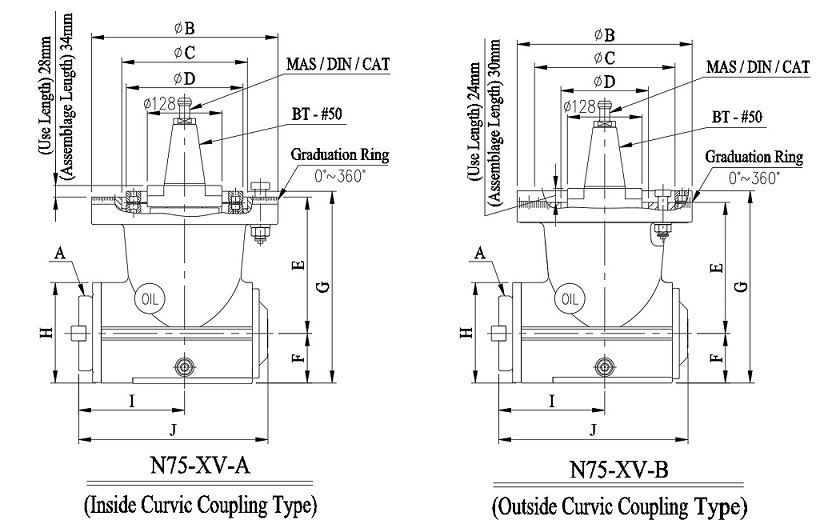

Type A B C D E F G H I J Max.Speed Max.Torque
N75-XV-A ISO-50 Ø320 Ø200 Ø216 245 85 330 172.5 182 325

2000 RPM
3000 RPM

 1000 N-m
N75-XV-B ISO-50 Ø300 Ø241 Ø150 245 85 330 172.5 182 325

2000 RPM
3000 RPM

 1000 N-m
