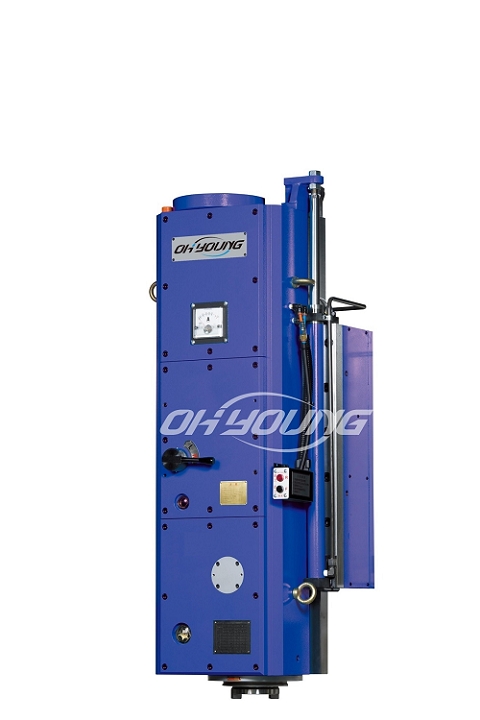

OY-T10NC Milling Head-2 Section Speed Change Type
1. This milling head is one of our CNC boring-milling head series, and most suitable forinstalling to gantry milling machine, single arm milling machine and special purpose
machine as heavy milling.
2. The inner wall is thicker. The main body is rigid.
3. The spindle of the milling head is made of Japan material and NSK bearings. The inner
driving system has passed strict quality inspection, and is sturdy and durable. It functions
very well.
4. Travel: 600mm
5. It can work together with our Φ250 right angle milling head (angle head) to proceed with
five-side milling.
6. Temperature rises slowly.
Inquiry Now

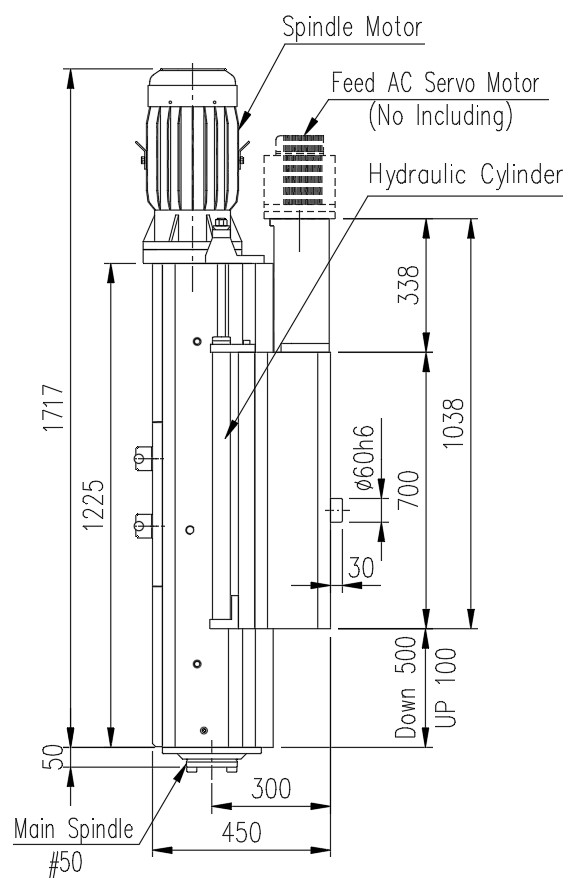

-三種規格圖面皆相同2.jpg)
| Item \ Model | OY-T10NC 2 Section Speed Change Type |
| Spindle Motor (Customer Provided) |
Servo Motor, Induction Motor or Permanent-magnet Synchronous Motor (Motor speed must be more than 3000RPM) |
| Steps of Spindle Speeds | 2 Section |
| Spindle Speeds | 1200RPM |
| Max. Diameter of Cutter | 200mm |
| Feed Motor | Customer Provided |
| Travel | 600mm |
| Lubrication Method | Lubrication with Cooler |
| Temperature Rise | Added circulating cooling system, temperature rise below 20℃ |
| Applicable Work | Low Speed Heavy Duty ; High Speed Finish Milling |
