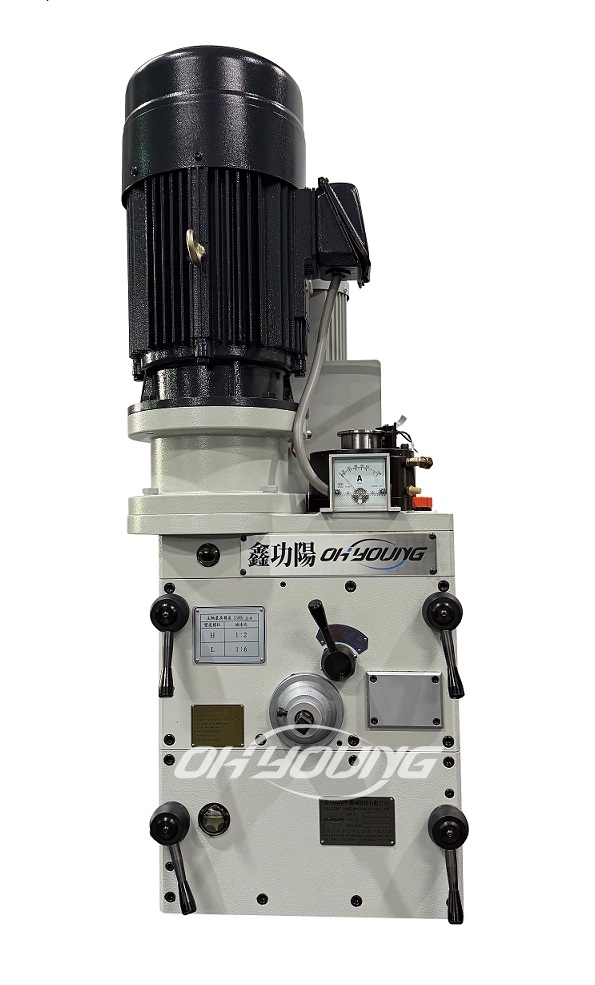

OY-XU12HL Hi-low 2 Speed Milling Head
1.The maximum spindle speed is 1500 rpm, which is suitable for various machining requirements and ensures stable and efficient cutting performance.
2.Hydraulic tool clamping and unclamping mechanism provide fast and reliable tool changing operation, enhancing machining efficiency and production stability.
3.Hi-low gear change mode are selectable, supporting hydraulic and manual shift to meet different machining conditions and operating requirements.
Inquiry Now
| Item \ Type | XU12HL | ||||||||
| Spindle Motor | 15~20HP 3 Phase Inverter Motor | ||||||||
| Hi-Low Gear Shifting | Manual | Hydraulic | |||||||
| Reduction Ratio | H | 1：2 | |||||||
| L | 1：6 | ||||||||
| Spindle Speed | Max. 1500RPM (When the speed is higher than 1000RPM, an oil cooler is required) |
||||||||
| Spindle Clamping/Unclamping | Manual | Air | Hydraulic | ||||||
| Clamping Tool | M24 | NT | MAS(BT50-45°) | ||||||
| Max. Tool Diameter | Ø250 | ||||||||
| Spindle Clamping Force | 1800 ± 100 kgf | ||||||||
| Feed Travel | 350mm (Down 100mm , Up 250mm) | ||||||||
| Feed Motor | 3 Phase Planetary Gearbox | ||||||||
| Feed Ball Screw | Trapezoidal Screw(P=5) | ||||||||
Note: 1.Balance Cylinder is an optional.
2.CTS(Coolant Through Spindle) is an optional for user using hydraulic tool clamping & unclamping.
2.CTS(Coolant Through Spindle) is an optional for user using hydraulic tool clamping & unclamping.
